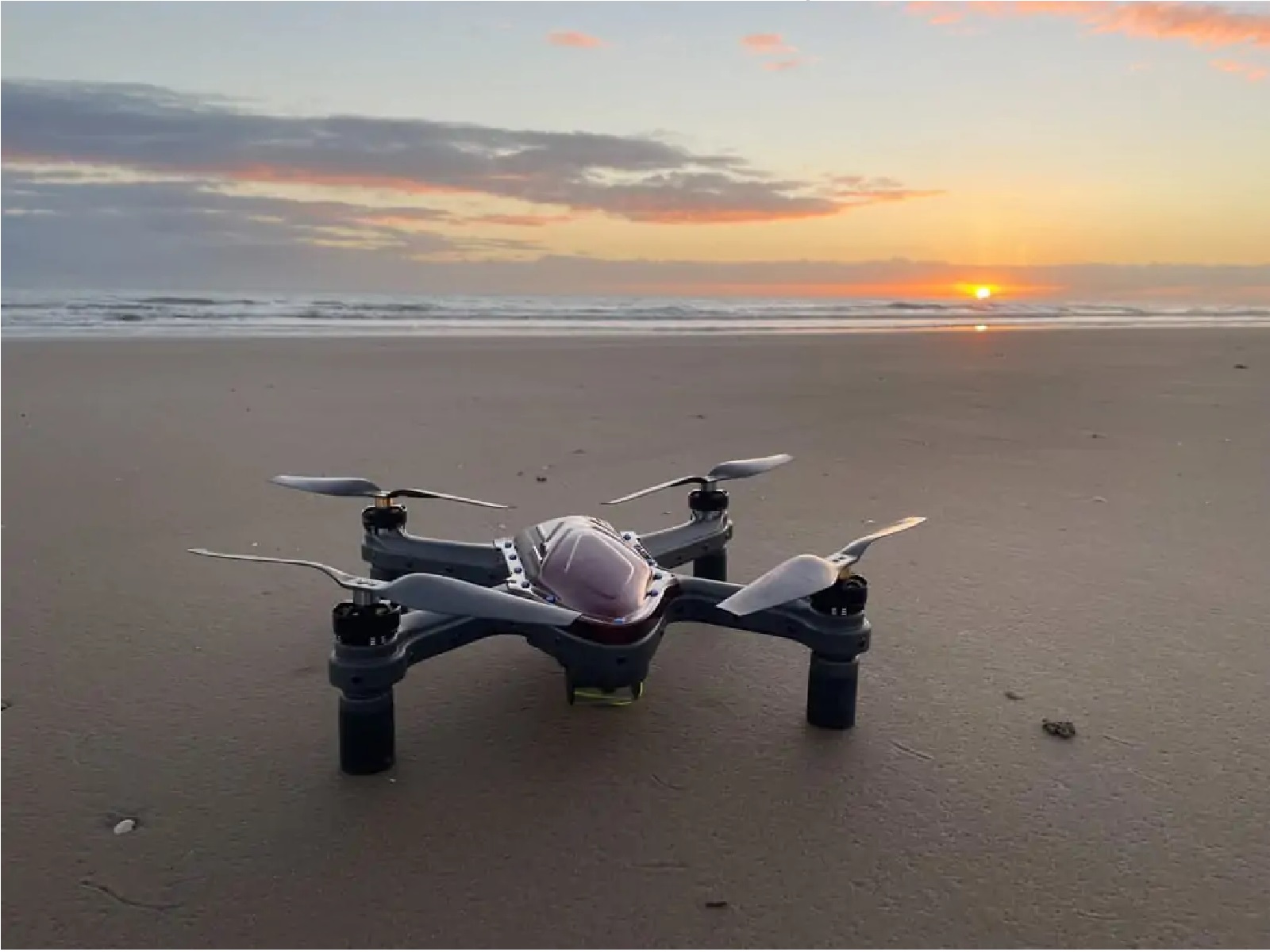

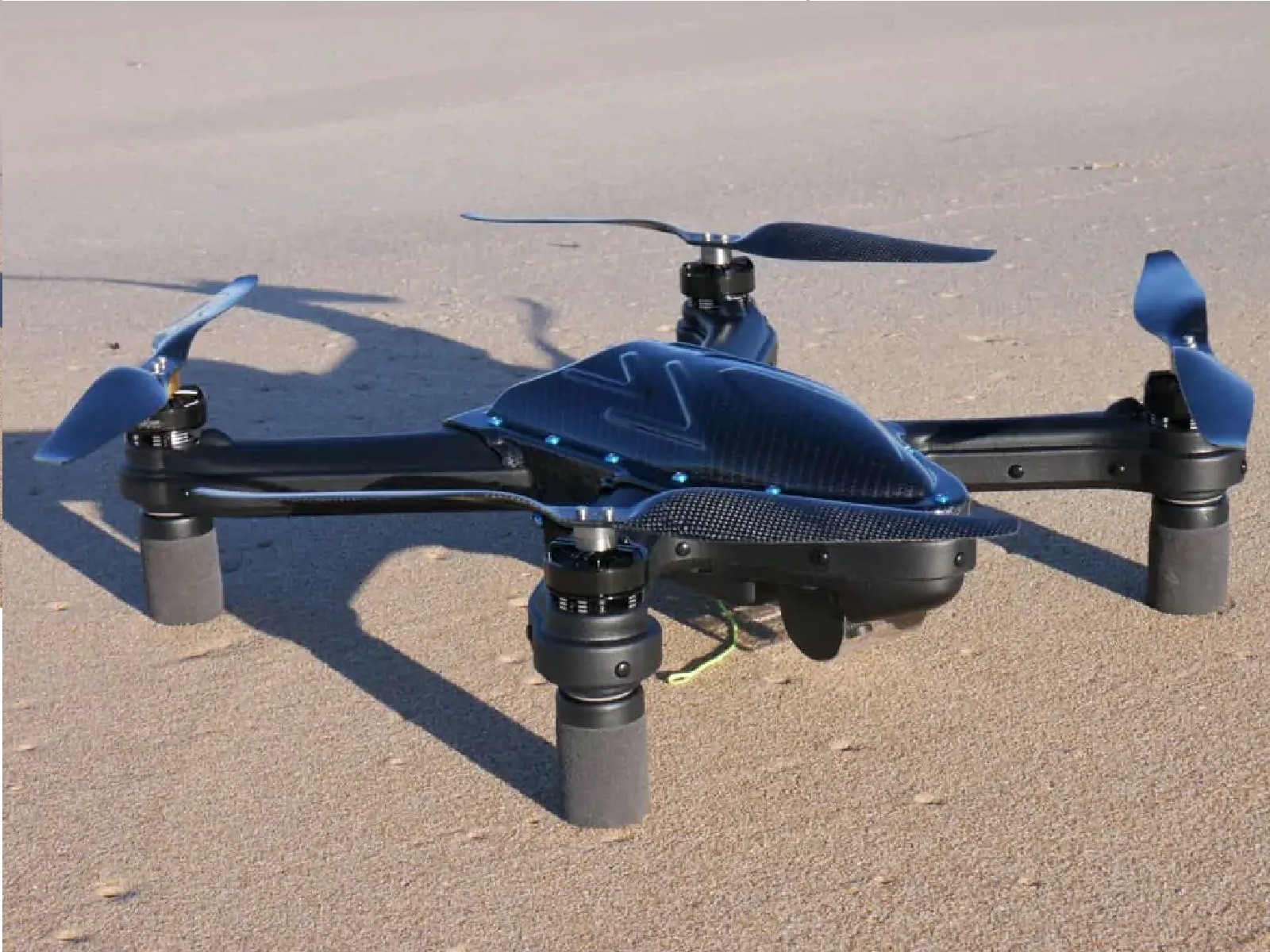

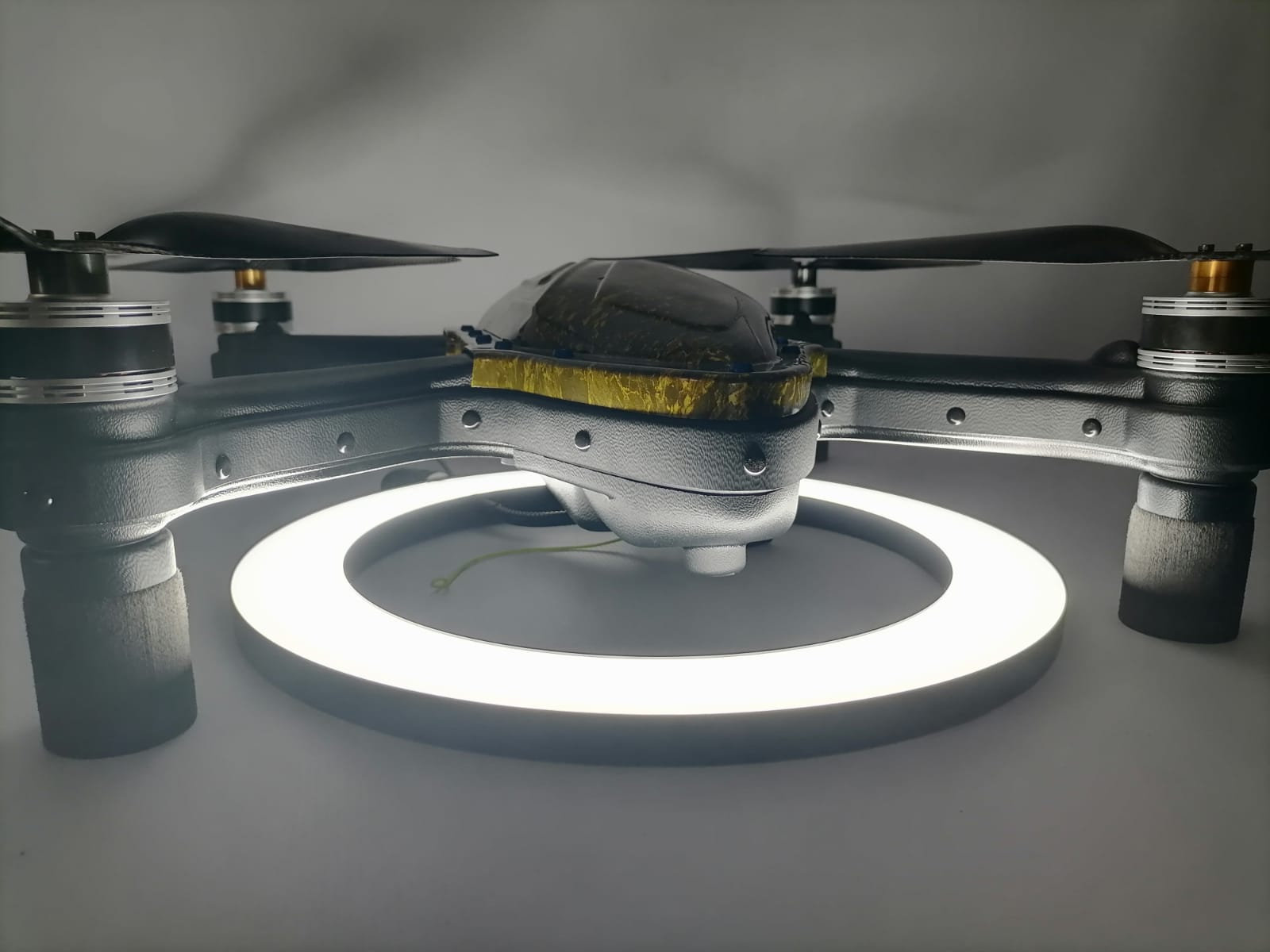

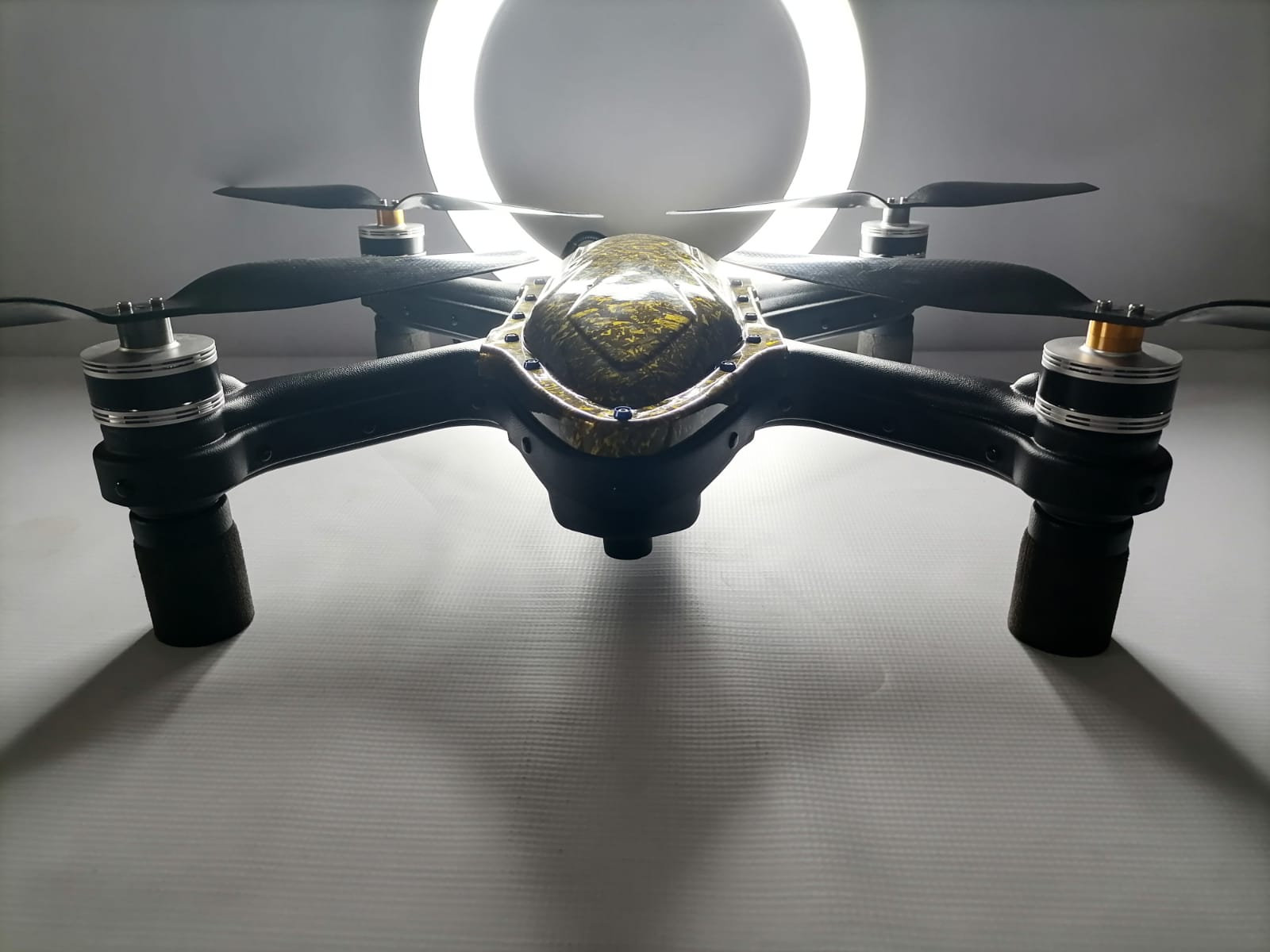

We have searched the Globe to bring you cutting edge technology with epic standard, to ensure you have that locked in feeling when flying our latest CutaCopter Trident, carefully intergrated is the ever stable RC link by SkyDroid with the SkyDroid T10 Radio System, upgradable to the H12 with onscreen display as an optional extra.

Taking care of flight control at its core is the Supercharged, fully feature packed Advanced AutoPilot by CUAV Sixth Generation flight controller the V6X which brings exceptional speed and power efficiency within its durable all-aluminium enclosure with the UBLOX M9N GPS Module and Industrial Grade Compass, incorporated into this flight controller is temperature compensation which makes the sensor work at a constant temperature for stable and precise operation. Making the Trident CutaCopter's fastest Chipset ever.

Greatly reducing maintenance and increasing reliablity is the new and improved Power Module with UAVCAN protocol digital power detection, using CUAV independent R&D ITT algorithm, accurate measurement of CutaCopter's real-time voltage and current, making flight time estimation more reliable and the power module maintenance free.

To put all this togather we rely on the tried and trusted EcoSystem by AutoPilot with CutaCopter's Custom in house parameter set to give you the Ultimate Drone Experience.

In Short this gives us the ability to produce our most Advanced Mega Power, Full of Might and just Awesome Product.

At Unmanned SA Greatness never Ends ......

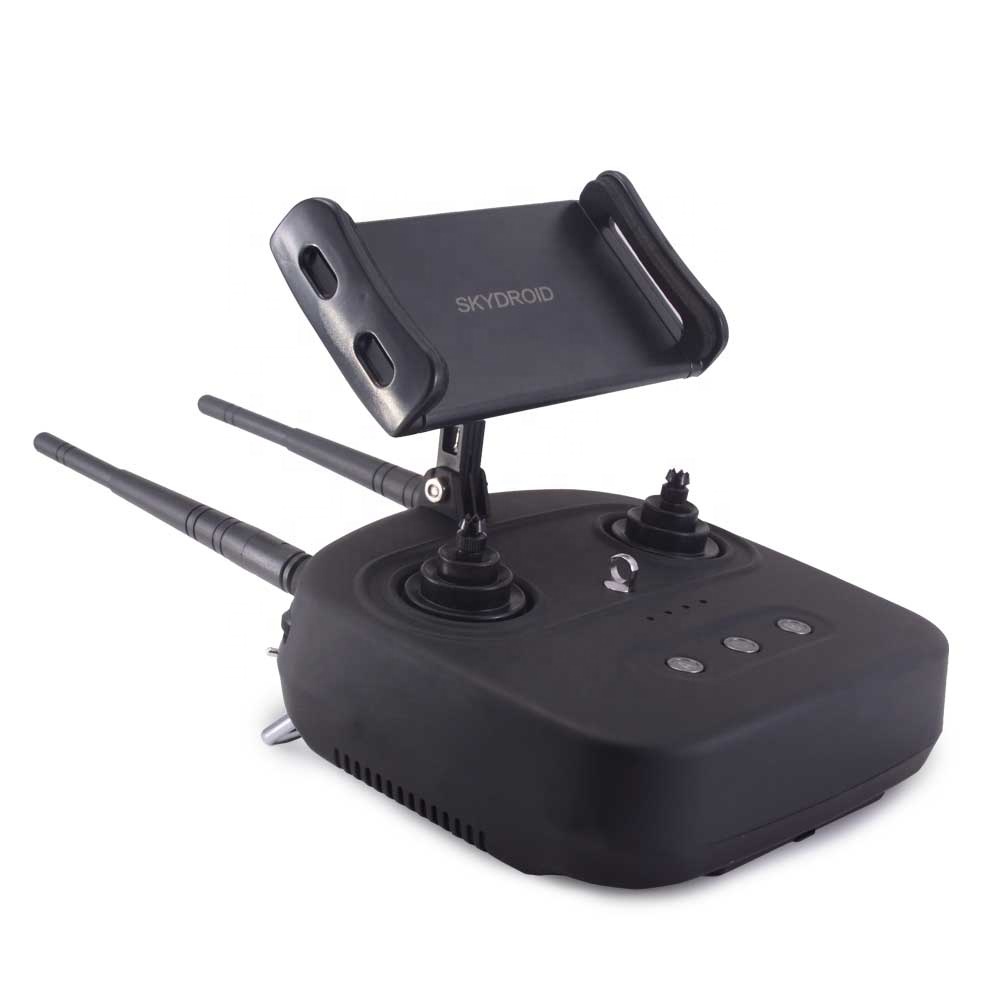

Taking Care of the radio link between Pilot and Drone is no easy feat, for this reason we rely on the Powerful SkyDroid T10 Radio system
using 2.4Gig radio frequency with the all reliable MAVLINK connection for the Telemetry to the Customers choice of Android Device which includes but not limited to:

- Battery Voltage,
- Distance,
- Altitude,
- Location of Drone on a Google Map,
- Sattelite Count
- RC Signal Strength,
- Alarm messages,
- Voice feedback......

Main FMU Processor: STM32H743
On-board sensors:
Accelerometer/Gyroscope: ICM-42688-P(X7:BMI088)
Accelerometer/Gyroscope: ICM-20689
Accelerometer/Gyroscope: ICM-20689(X7:ICM-20649)
Magnetometer: RM3100
Barometer: MS5611*2
Interfaces:
14 PWM outputs （12 supports Dshot）
Support multiple RC inputs (SBUs/CPPM/DSM)
Analogue/ PWM RSSI input
2 GPS ports(GPS and UART4 ports)
6 i2c buses(Four i2c dedicated ports)
2 CAN bus ports
2 Power ports(Power A is common adc interface, Power C is uavcan battery interface)
1 ADC intput
1 USB ports
Power System:
Power: 4.5~5.4V
USB Input: 4.75~5.25V
Servo Rail Input: 0~10V
Weight and Dimensions:
Weight: 101 g
Other Characteristics:
Operating temperature: -20 ~ 85°c
Three imus
Supports temperature compensation
Internal shock absorption

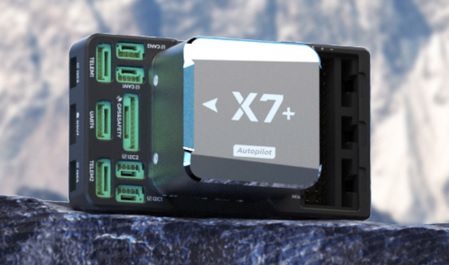

x7 plus pinouts

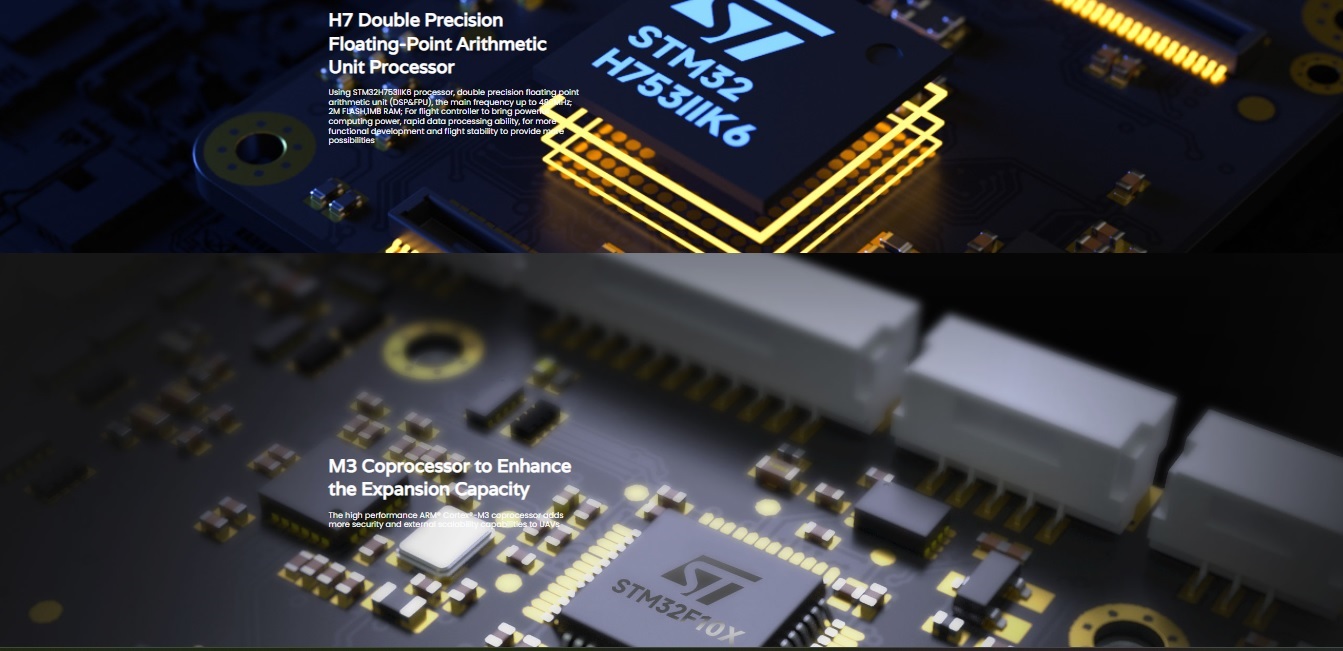

Using STM32H753IIK6 processor, double precision floating point arithmetic unit (DSP&FPU), the main frequency up to 480MHz; 2M FLASH,1MB RAM; For flight controller to bring powerful computing power, rapid data processing ability, for more functional development and flight stability to provide more possibilities

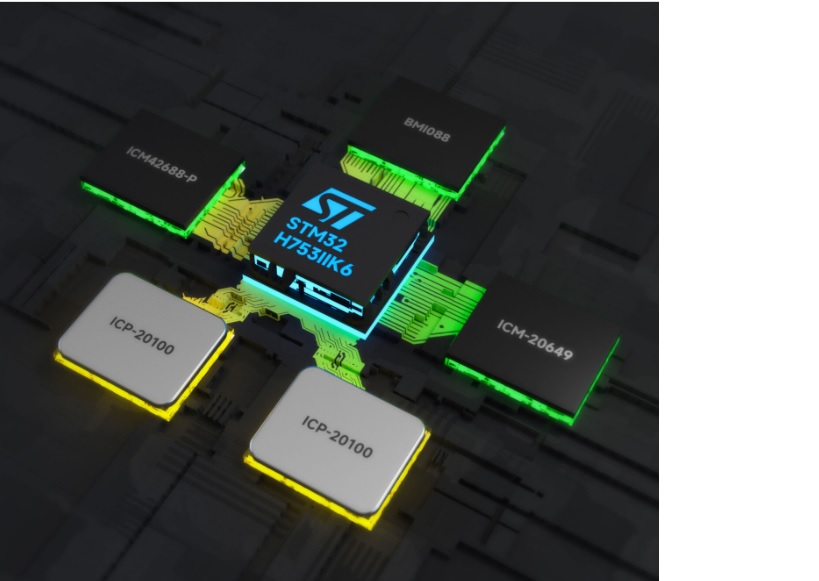

Ensures Flight Safety With three redundant IMUs and two redundant barometers on separate buses, when one set of IMUs fails, the system seamlessly switches to another reliable IMU, making the flight safer

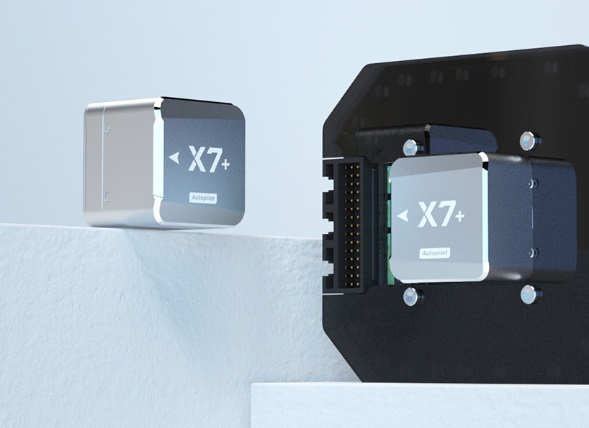

High-speed communication with task computers through Ethernet; In the future, high-end links, INS and high-end mapping cameras can be connected through Ethernet to meet the needs of high-end UAVs

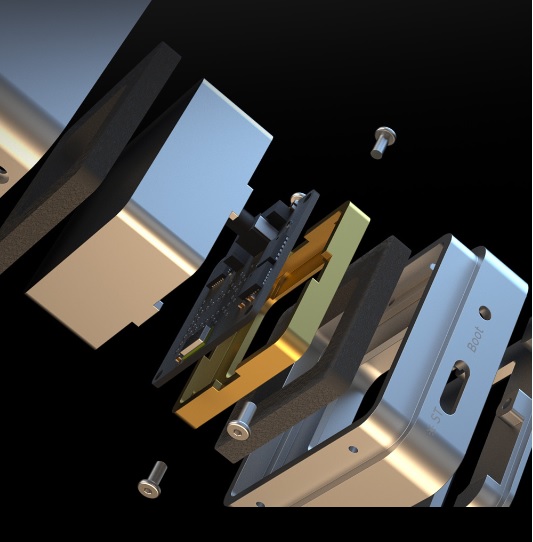

A New Generation of Patented Built-in Shock Absorber Design The Pixhawk V6X uses a new generation of patented built-in shock absorption design to effectively filter out high-frequency vibration and ensure the accuracy of sensor data at all times

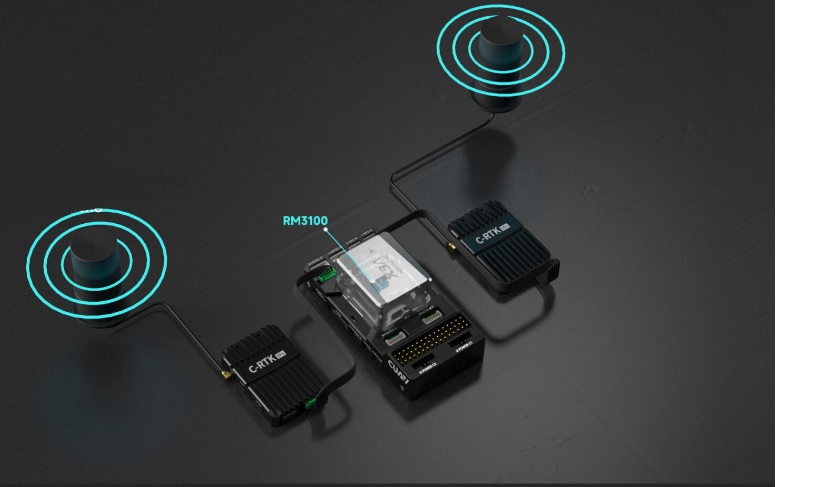

In order to adapt to the complex magnetic field environment, the RM3100 magnetic compass is selected, which supports the GPS direction finding function, and completely solves the trouble of magnetic compass interference

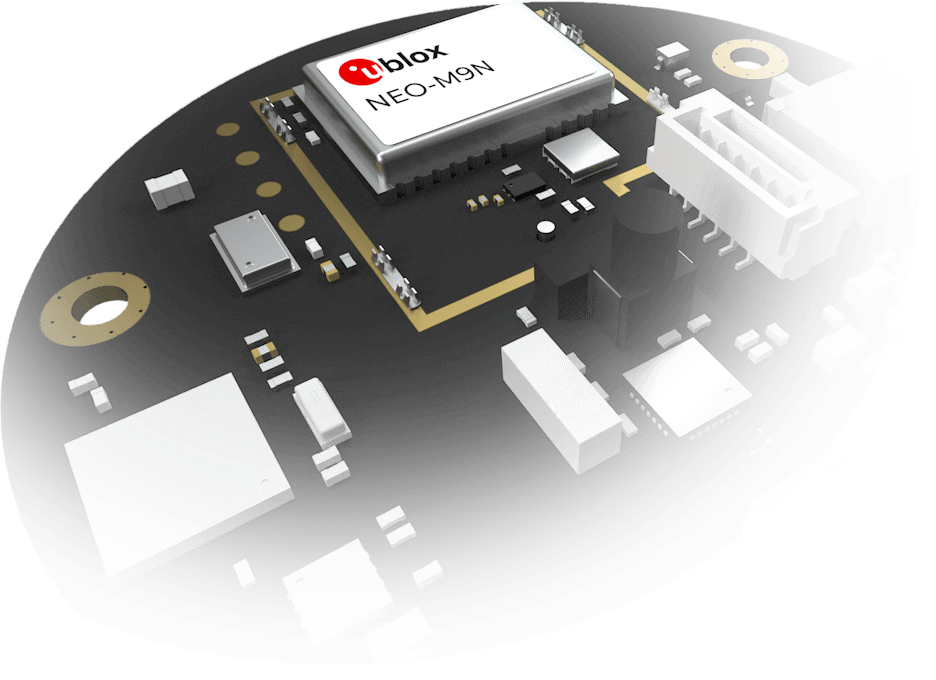

NEO 3 UBLOX M9N Navigational Module. CAN Bus communications with CROCOMM custom 4 star high gain antenna system, Using RM3100 industrial grade sensor, for better anti-interference performance

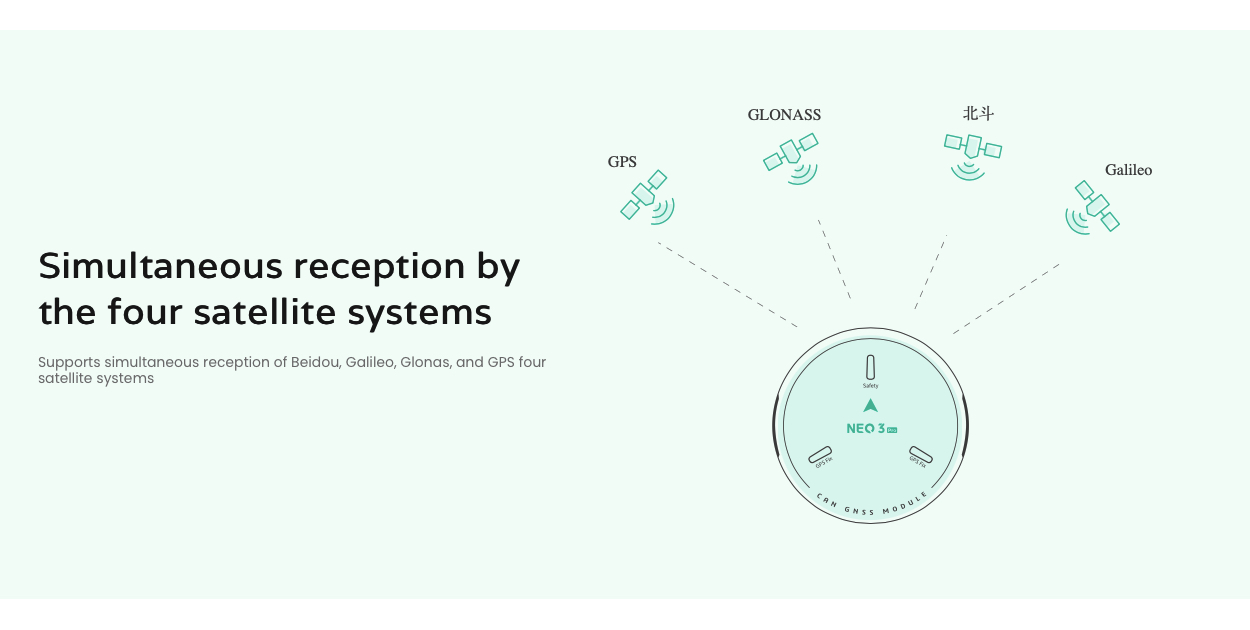

NEO 3 Pro GNSS UAV Module supporting Beidou, Galileo, Glonas and GPS receive concurrently with horizontal position accuracy of up to 0.7 meters.

NEO 3 Pro adopts SAW+LNA+SAW triple filter design, effectively avoiding the influence of remote control, data transmission, 4G signals on GPS positioning reception.
